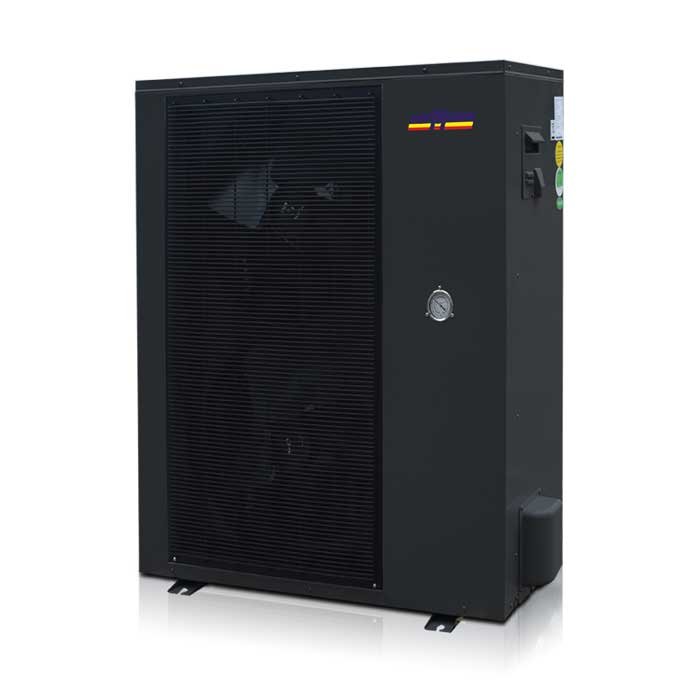

Hofmann Heat Star 13kW R410A
Share:
Original price was: 6,600.00€.6,000.00€Current price is: 6,000.00€.
The advantages of a monoblock system are: easy installation and no additional requirements on the refrigerant pipes. It can be easily connected to your home’s heating system using water connections.
Buy more save more!
Buy from 2 to 9 items and get 10% OFF
on each product
Hofmann Heat Star 13kW R410A
Original price was: 6,600.00€.6,000.00€Current price is: 6,000.00€.
Heat Star – Monoblock (R410A)
Monoblock system: As the name suggests, a monoblock is a packaged equipment, where all the components of the entire system are used within a single piece of equipment. Monoblock equipment must be installed outdoors. The advantages of a monoblock system are: easy installation and no additional requirements on the refrigerant pipes. It can be easily connected to your home’s heating system using water connections. Hofmann also offers a semi-monoblock system, where only a small part of the hydraulic circuit is separated from the main unit, as well as complete monoblock systems, which only require simple water connections.
Specifications
| Hofmann Heat Star 13kW R410A | ||||||
|---|---|---|---|---|---|---|
| Name | Heat Star 13M | |||||
| Model | JM | PAVH-13V1D*-II | ||||
| Power/coolant | V/Hz/Ph | 220 ~ 240/50/1 – R410A | ||||
| Max. Heating capacity (1) | kW | 6.21 | ||||
| COP (1) | W/W | 4.05 | ||||
| Heating capacity Min./Max.(1) | kW | 2.19 / 6.21 | ||||
| Heating input power min./max.(1) | W | 540 / 1530 | ||||
| COP min./max.(1) | W / W | 4.05 / 5.87 | ||||
| Max. Heating capacity(2) | kW | 5.8 | ||||
| COP (2) | W / W | 3.22 | ||||
| Heating capacity Min./Max.(2) | kW | 2.05 / 5.8 | ||||
| Heating input power Min./Max.(2) | W | 640 / 1810 | ||||
| COP min./max.(2) | W / W | 3.22 / 4.12 | ||||
| Max. Cooling capacity (3) | kW | 5.81 | ||||
| EER (3) | W / W | 3.51 | ||||
| Cooling capacity min./max.(3) | kW | 2.05 / 5.81 | ||||
| Cooling input power min./max.(3) | W | 768 / 2105 | ||||
| EER min./max.(3) | W / W | 3.15 / 4.71 | ||||
| Max. Cooling capacity (4) | W / W | 4.5 | ||||
| EER (4) | W / W | 2.52 | ||||
| Cooling capacity min./max.(4) | kW | 1.59 / 4.5 | ||||
| Cooling input power min./max.(4) | W | 614 / 1740 | ||||
| EER min./max.(4) | W / W | 2.52 / 4.32 | ||||
| Compressor – Type – Quantity/System | / | Double rotation – 1 | ||||
| Fan – quantity | 1 | |||||
| Fan – air flow | m3/h | 2700 | ||||
| Fan – Rated power | W | 65 | ||||
| Noise level | dB(A) | 30/52 | ||||
| Water side heat exchanger – type | Clump plate | |||||
| Water side heat exchanger – water pressure drop | kPa | 20 | ||||
| Water side heat exchanger – pipe connection | Inch | G1″ | ||||
| Permitted water flow – min./nomin./max. | L/S | 0.19 / 0.29 / 0.33 | ||||
| Net dimensions (L×W×H) – indoor unit | mmm | 570 x 550 x 255 | ||||
| Net dimensions (L×W×H) – outdoor unit | mmm | 1064x353x754 | ||||
| Net weight – indoor unit | Kg | 25 | ||||
| Net weight – outdoor unit | Kg | 76 | ||||
Note:
(1) Heating conditions: inlet/outlet water temperature: 30℃/35℃, ambient temperature: DB 7℃/WB 6℃;
(2) Heating conditions: inlet/outlet water temperature: 40℃/45℃, ambient temperature: DB 7℃/WB 6℃;
(3) Cooling conditions: inlet/outlet water temperature: 23℃/18℃, ambient temperature: DB35℃/WB24℃;
(4) Cooling conditions: inlet/outlet water temperature: 12℃/7℃, ambient temperature: DB35℃/WB24℃;
(5) Specifications are subject to change without notice. For actual unit specifications, please refer to the unit designations.
