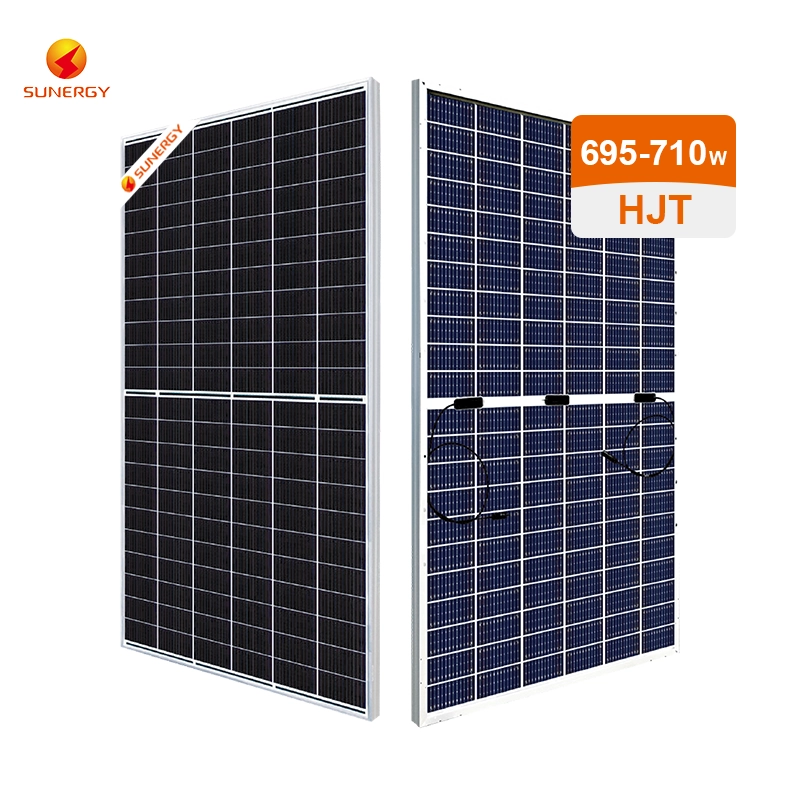

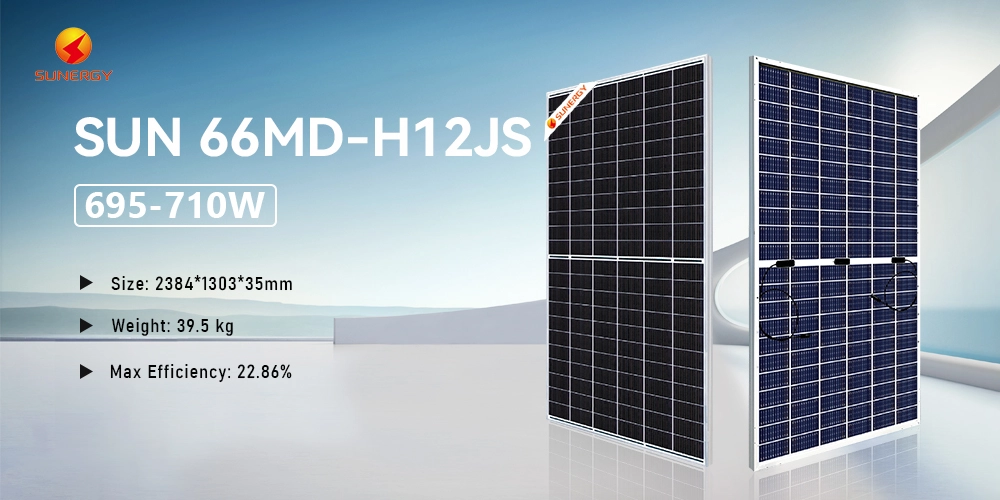

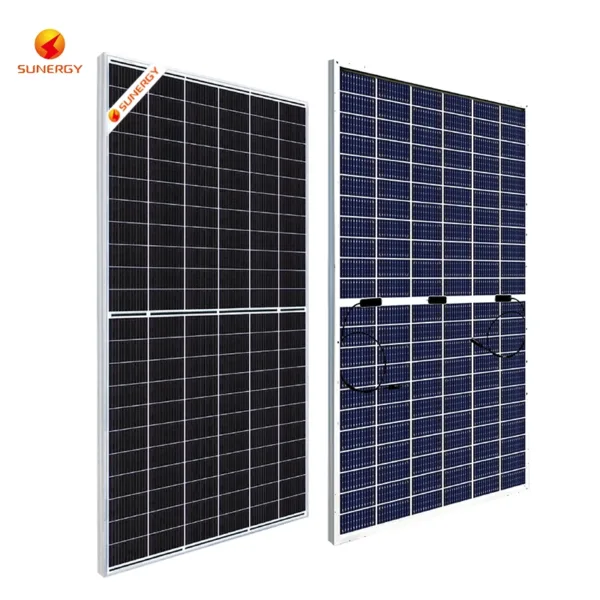

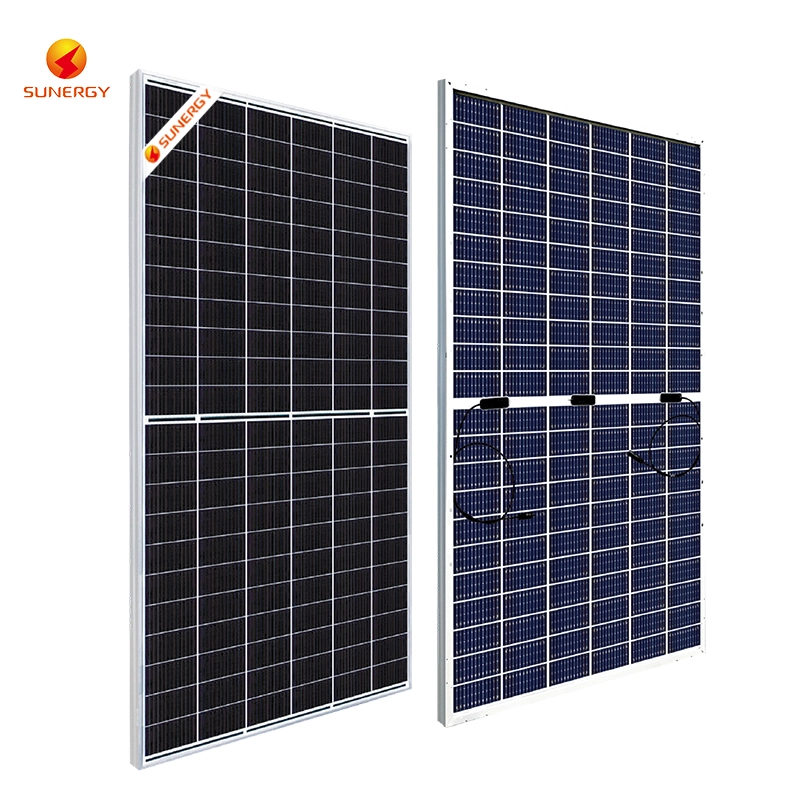

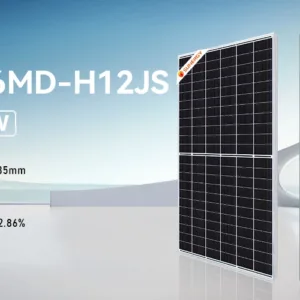

SUNERGY Bifacial Half-Cut HJT 210mm Cell Solar Panel 695-710W
Share:
Original price was: 119.00€.109.00€Current price is: 109.00€.
New N-Type TOPCon Bifacial 182mm Cell Half Cut Solar Panel PV Module.
Buy more save more!
Buy from 2 to 9 items and get 10% OFF
on each product
SUNERGY Bifacial Half-Cut HJT ...
Original price was: 119.00€.109.00€Current price is: 109.00€.
SUNERGY MBB Half-Cut Mono Crystalline 210mm Bifacial Cell HJT Double Glass Solar Panel PV Module.
SUNERGY LINEAR PERFORMANCE WARRANTY:
● 12 Years Manufacturing Warranty
● 12 Years 94.6% Power Output
● 25Years 90% Power Output
Model: SUN 72MD-H8NS
Power: 560W/565W/570W/575W/580W
Sunergy Advantages
🌞 More Energy丨Higher Return
🔋 Lower BOS cost of solar project
🔋 Lower LCOE of photovoltaic
🔋 Higher energy yield per watt for PV system
🔋 Higher IRR for solar investors
Mechanical Specification:
Cell Type: HJT 210*105mm
Number of Cells: 132(6*22)
Dimensions(A*B*C): 2384*1303*35mm
Weights: 39.5kg
Glass: 2.0/2.0mm Tempered Low lron Glass
Aluminium Frame: Anodised Aluminium
Junction Box: Spilit Junction Box(IP68, three diode)
Connector: Mc4 Compatible
Output Cables: 4.0mm², +300mm, -300mm Customized Length
Electrical Characteristics
| Module Type | 685W | 690W | 695W | 700W | 705W | 710W | ||||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power At STC(Pmax) | 685W | 529.2W | 690W | 533.1W | 695W | 537.0W | 700W | 540.8W | 705W | 544.7W | 710W | 548.6W |
| Short Circuit Current(Isc) | 17.22A | 13.89A | 17.26A | 13.92A | 17.31A | 13.96A | 17.35A | 13.99A | 17.39A | 14.02A | 17.43A | 14.06A |
| Open Circuit Voltage(Voc) | 49.4V | 46.6V | 49.6V | 46.7V | 49.8V | 46.9V | 50.0V | 47.1V | 50.2V | 47.3V | 50.4V | 47.5V |
| Maximum Power Current(Impp) | 16.20A | 13.06A | 16.24A | 13.09A | 16.28A | 13.13A | 16.32A | 13.16A | 16.36A | 13.19A | 16.40A | 13.22A |
| Maximum Power Voltage(Vmpp) | 42.3V | 40.5V | 42.5V | 40.7V | 42.7V | 40.9V | 42.9V | 41.1V | 43.1V | 41.3V | 43.3V | 41.5V |
| Module Efficiency | 22.05% | 22.21% | 22.37% | 22.53% | 22.70% | 22.86% | ||||||
| Power Tolerance | 0～+5W | |||||||||||
| Maximum System Voltage | VDC 1500V | |||||||||||
| Maximum Series Fuse | 30A | |||||||||||
| Increased Snowload Acc.to lec 61215 | 5400Pa | |||||||||||
| Operating Temperature | -40～+85℃ | |||||||||||
| Number of Bypass Diodes | 3 | |||||||||||
| Norminal Operating Cell Temperature(Noct) | 45℃±2℃ | |||||||||||
| Temperature Coefficient of Pmax | -0.26%℃ | |||||||||||
| Temperature Coefficient of Voc | -0.24%℃ | |||||||||||
| Temperature Coefficient of Isc | 0.04%℃ | |||||||||||
| STC (standard test environment): irradiance 1000W/m², battery temperature 25°C, spectrum AM1.5 NOCT (normal battery operating temperature): irradiance 800W/m², ambient temperature 20°C, spectrum AM1.5, wind speed 1m/s. |
||||||||||||
| Electrical Characteristics With Different Rear Side Power Gain | ||||||||||||
| Backside Power Gain | 10% | 15% | 20% | 25% | 30% | |||||||
| Maximum Power At STC(Pmax) | 765 | 799 | 834 | 869 | 904 | |||||||
| Short Circuit Current(Isc) | 19.00 | 19.85 | 20.62 | 21.48 | 22.35 | |||||||
| Open Circuit Voltage(Voc) | 49.9 | 49.9 | 50.1 | 50.1 | 50.1 | |||||||
| Maximum Power Current(Impp) | 17.87 | 18.67 | 19.40 | 20.21 | 21.02 | |||||||
| Maximum Power Voltage(Vmpp) | 42.8 | 42.8 | 43.0 | 43.0 | 43.0 | |||||||
